Leadgene Leadgene
Anti-DENV M Antibody [Clone 31-1]
More Images
Catalog Number

LDG0009YA

More Documents
Loading package & price...
  • Overview

    Description

    Dengue virus belongs to the family Flaviviridae, genus Flavivirus and consists of four distinct serotypes (DENV1 to 4). Dengue virus is transmitted by mosquitos majorly of species Aedes aegypti and Aedes Albopictus that widespread around tropics and subtropics. The Membrane protein is the second smallest protein of dengue virus. Before dengue virus particles release, host protease furin cleaves prM into M. This amphipathic helical portion acts as an important component of the mature virion, interacting with envelope protein to promote invasion, packing mature, and release.

    Product Note

    Recommended dilution factor:
    ELISA: 1:5000-20000
    WB: 1:1000-5000
    IFA: 1:500-1000
    FACS: Assay dependent

    Note: Working dilution for specific application should be determined by the investigator to obtain the best conditions.

  • Specifications
    • Host

      Mouse

      Clonality

      Monoclonal

    • Isotype

      IgG2b

      Clone Name

      clone 31-1

    • Immunogen

      Dengue virus M

      Reactivity

      Dengue virus

    • Application

      ELISA, WB, IFA, FACS

      Conjugation

      Unconjugated

    • Concentration

      1 mg/mL

      Storage Buffer

      Phosphate Buffered Saline containing 0.03% ProClin 300, pH 7.4.

    • Specificity

      M (membrane) protein

      Form

      Liquid

  • Instruction
    • Shipping

      The product is shipped with polar packs. Upon receipt, store it immediately at -20°C or lower for long term storage.

      Stability & Storage

      This product is stable after storage at:

      • 2-8°C for 2 weeks under sterile conditions from date of receipt.
      • -20°C or -80°C for 12 months under sterile conditions from date of receipt.

      Avoid repeated freeze/thaw cycles.
      Suggestion: Divide antibody into several vials. Keep only vials for usage at 2-8°C.

  • Image
    Immunofluorescence analysis of Anti-DENV M Antibody [Clone 31-1] Control Vero cells (uninfected) and Virus (DENV 1,2) infection Vero cells were fixed in 4% PFA, permeabilized with PBS containing 0.1% Triton X-100. Cells were stained with mouse anti-DENV M monoclonal antibody (1:400) followed by secondary antibodies (goat anti-Mouse IgG-iFluor 488, 1:400, green) and cell nuclei were stained with Hoechst 33342 (Blue).

    Immunofluorescence analysis of Anti-DENV M Antibody [Clone 31-1]
    Control Vero cells (uninfected) and Virus (DENV 1,2) infection Vero cells were fixed in 4% PFA, permeabilized with PBS containing 0.1% Triton X-100. Cells were stained with mouse anti-DENV M monoclonal antibody (1:400) followed by secondary antibodies (goat anti-Mouse IgG-iFluor 488, 1:400, green) and cell nuclei were stained with Hoechst 33342 (Blue).

    Immunofluorescence analysis of Anti-DENV M Antibody [Clone 31-1] Control BHK cells (uninfected) and Virus (DENV 1,2) infection BHK cells were fixed in 4% PFA, permeabilized with PBS containing 0.1% Triton X-100. Cells were stained with mouse anti-DENV M monoclonal antibody (1:400) followed by secondary antibodies (goat anti-Mouse IgG-iFluor 488, 1:400, green) and cell nuclei were stained with Hoechst 33342 (Blue).

    Immunofluorescence analysis of Anti-DENV M Antibody [Clone 31-1]
    Control BHK cells (uninfected) and Virus (DENV 1,2) infection BHK cells were fixed in 4% PFA, permeabilized with PBS containing 0.1% Triton X-100. Cells were stained with mouse anti-DENV M monoclonal antibody (1:400) followed by secondary antibodies (goat anti-Mouse IgG-iFluor 488, 1:400, green) and cell nuclei were stained with Hoechst 33342 (Blue).

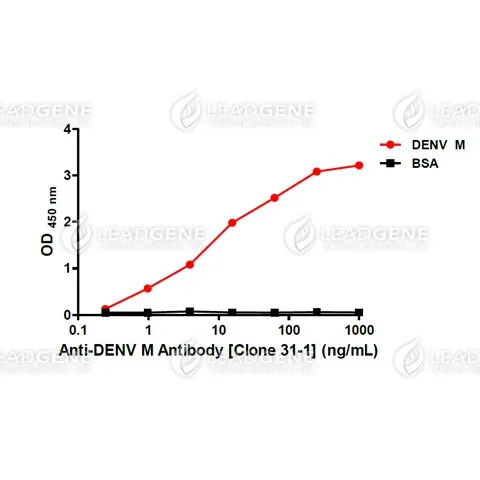

    ELISA titration of Anti-DENV M Antibody [Clone 31-1] Titration curve of anti-DENV M antibody in ELISA. Red: DENV M; Black: BSA (negative control).

    ELISA titration of Anti-DENV M Antibody [Clone 31-1]
    Titration curve of anti-DENV M antibody in ELISA. Red: DENV M; Black: BSA (negative control).

    Western blotting analysis of Anti-DENV M Antibody [Clone 31-1] Virus infection C636 cell lysates were stained with mouse anti-DENV M monoclonal antibody at 1:1000 dilution. Lane 1: ZIKV infection (10 μg), Lane 2: DENV1 infection (10 μg), Lane 3: DENV2 infection (10 μg), Lane 4: DENV3 infection (10 μg), Lane 5: DENV4 infection (10 μg), Lane 6: C636 cell lysate (10 μg).

    Western blotting analysis of Anti-DENV M Antibody [Clone 31-1]
    Virus infection C636 cell lysates were stained with mouse anti-DENV M monoclonal antibody at 1:1000 dilution.
    Lane 1: ZIKV infection (10 μg), Lane 2: DENV1 infection (10 μg), Lane 3: DENV2 infection (10 μg), Lane 4: DENV3 infection (10 μg), Lane 5: DENV4 infection (10 μg), Lane 6: C636 cell lysate (10 μg).

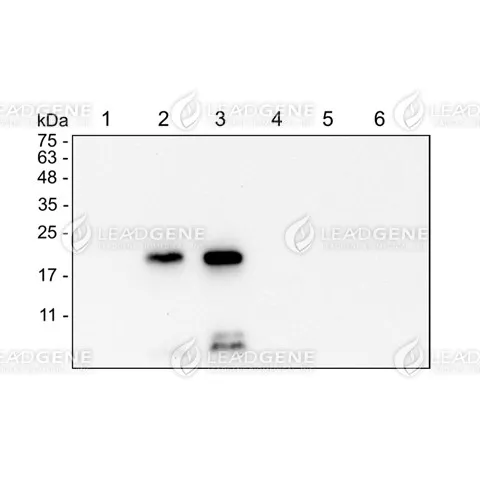

    Western blotting analysis of Anti-DENV M Antibody [Clone 31-1] Virus infection Vero cell lysates were stained with mouse anti-DENV M monoclonal antibody at 1:1000 dilution. Lane 1: Vero cell lysate (10 μg), Lane 2: ZIKV infection (10 μg), Lane 3: DENV1 infection (10 μg), Lane 4: DENV2 infection (10 μg), Lane 5: DENV3 infection (10 μg), Lane 6: DENV4 infection (10 μg).

    Western blotting analysis of Anti-DENV M Antibody [Clone 31-1]
    Virus infection Vero cell lysates were stained with mouse anti-DENV M monoclonal antibody at 1:1000 dilution.
    Lane 1: Vero cell lysate (10 μg), Lane 2: ZIKV infection (10 μg), Lane 3: DENV1 infection (10 μg), Lane 4: DENV2 infection (10 μg), Lane 5: DENV3 infection (10 μg), Lane 6: DENV4 infection (10 μg).

    1
    /
    5
    Total   (5)
  • Review

    Help others learn more about this product. Use the link below to share your experience.

  • Publication

    There are currently no publications. Use the link below to let us know.

  • Datasheet & Documents
    MSDS
    Manual
    1
    /
    1

Disclaimer:For Research Use or Further Manufacturing Only.
